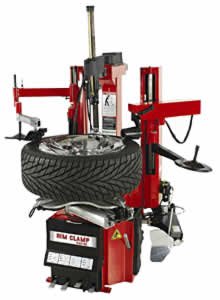

Model 9024E Rim Clamp Tire Changer

Model 9024E Rim Clamp Tire Changer Review

Price : $13,749.95

Rate This Product
		Brand:	Unknown
		List Price:	$13,749.95
		Our Price:
		Total Price: In Stock. Usually ships in 1-2 business days

Model 9024E Rim Clamp Tire Changer Overview

The Coats 9024E Tire Changer was designed to handle everything from the simplest standard steel wheel to the largest most delicate custom alloy wheels. Multiple power features allow you

to change even difficult run flat and low profile tires with minimal effort and maximum efficiency.

Speed: Pneumatic drop center, power taper roller, and swing-in rollers speed up floor-to-floor times and reduce operator fatigue.

Accuracy: Precision gauges mean accurate inflation, and our Xshaped tabletop provides the right clamping pressure to the most

delicate wheels without damage.

Durability: Super-tough fiber reinforced composite air cylinders virtually never wear out, and bead looseners have extra support blocks for extra protection and durability.

Ease of Use: Foot controls are positioned for easy access. Built in bead sealing jets and table top inflation help simplify the job.



Specifications:

Wheels Handled: Steel, alloy, and performance.

Mount/Demount Mechanism: Automatic tilt back.

Tool Head Offset Adjustment: Pneumatic lift, set back, and lock.

Shape of Tabletop: "X" shaped for rigid perimeter

support of the wheel.

Wheel Clamping Method: Four self centering clamps in table top actuated by two pneumatic cylinders.

Bead Loosening System: Foot control actuates 7-1/4" dual action cylinder that handles wheels up

to 16" wide.

Electric Drive System: 110v,30A single phase.

Pressure Limiter: Standard.

Bead Seating Reservoir: 4.3 gal. separate tank, pressure protected.

Inflation Gauge: Easily calibrated 0 to 60 PSI gauge with protection to 200 PSI. Damage

resistant Lexan faceplate.

Filter Lubricator: Standard with automatic drain and large capacity lubricator bowl.

Rim Diameter: 12" - 24" External; 14" - 26" Internal.

Maximum Tire Width: 16 inches.
